If you’ve ever needed to drill through tough materials with precision, you know how important the right tool is. The Manhattan Heavy Duty Drill Press is designed to make your work easier and more accurate.
But how exactly does this powerful machine work? Understanding its features and functions can help you get the best results every time. Keep reading, and you’ll discover how this drill press can become your go-to tool for heavy-duty drilling tasks.
Manhattan Heavy Duty Drill Press Features
The Manhattan Heavy Duty Drill Press offers a solid mix of strength and precision. Its features make drilling tasks easier and more accurate. This tool is designed for both beginners and experienced users. Understanding its key features helps users get the best results every time.
Build And Design
The drill press has a strong metal frame. This ensures stability during use. Its compact design saves space in workshops. The worktable is adjustable for different angles. It supports various sizes of materials easily. The overall build aims for durability and safety.
Key Components
The drill press includes a spindle that holds the drill bit firmly. A chuck tightens the bit securely. The feed handles allow smooth control over drilling depth. It has a clear depth stop for accuracy. A built-in light brightens the work area. These parts work together for precise drilling.
Motor Specifications
The motor delivers steady power to handle tough materials. It runs quietly, reducing noise in the workspace. The motor speed can be adjusted to match different tasks. This flexibility helps in drilling wood, metal, or plastic. The motor is built to last and needs little maintenance.

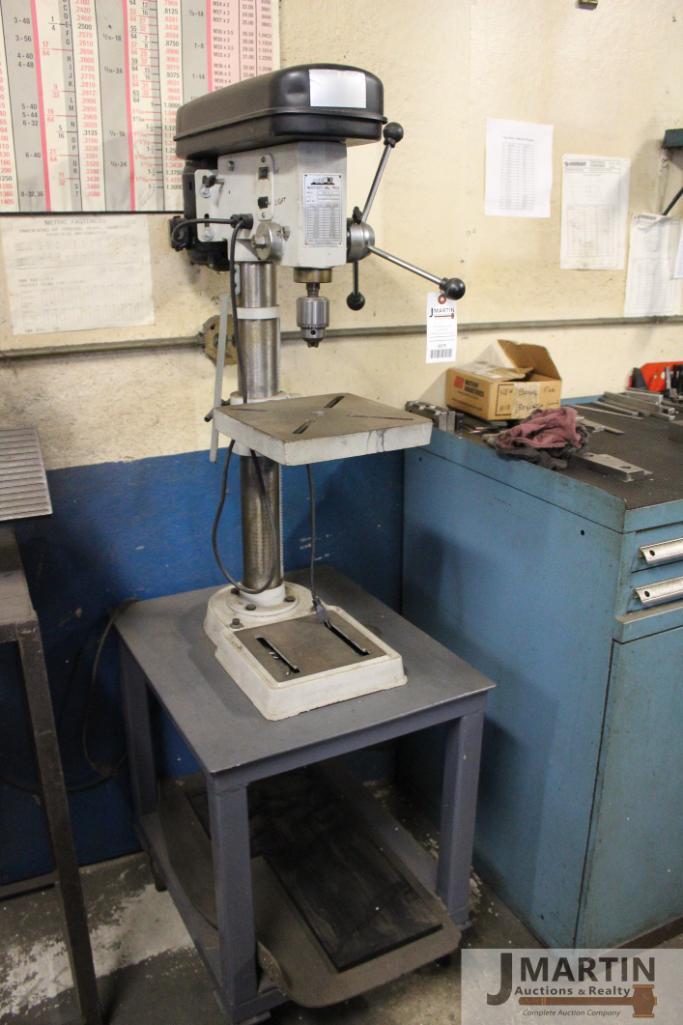

Credit: www.proxibid.com
Operating Mechanism
The operating mechanism of the Manhattan Heavy Duty Drill Press is built for power and precision. It combines simple parts to deliver smooth and reliable drilling. Understanding how it works helps users get the best results every time.
Power Transmission
The drill press gets its power from an electric motor. The motor turns a belt system connected to pulleys. This system transfers energy from the motor to the drill spindle. The belt and pulley setup ensures steady power flow with little loss.
Speed Control
Speed control is key for different drilling tasks. The pulleys have multiple steps to change belt position. Moving the belt changes the spindle speed. This allows the drill to work well on various materials, from wood to metal.
Drill Bit Movement
The drill bit moves up and down with a lever. Pulling the lever lowers the bit into the material. Releasing it raises the bit back up. This simple motion gives users control over the drilling depth and pressure.
Setup And Installation
Setting up the Manhattan Heavy Duty Drill Press is simple and quick. Proper installation helps the machine work safely and efficiently. This section guides you through each step of the setup process. Follow these instructions to get your drill press ready for use.
Unboxing And Assembly
Start by carefully opening the box. Remove all parts and check the list of included items. Look for the drill press body, base, handles, and tools. Assembly requires only basic tools like a wrench and screwdriver.
Attach the base to the drill press using the provided bolts. Tighten all screws firmly. Connect the handles to the drill head according to the manual. Ensure all parts fit snugly without gaps.
Mounting And Stability
Place the drill press on a flat and sturdy surface. Use mounting holes on the base to secure it to a workbench or stand. Bolt it tightly to prevent any movement during operation.
Check the drill press for wobbling. Adjust the mounting if needed. A stable drill press improves accuracy and safety.
Electrical Connections
Confirm the power source matches the drill press voltage. Use a grounded outlet to plug in the machine. Avoid extension cords for better safety and performance.
Inspect the power cord for any damage before use. Turn on the drill press and test the controls. Make sure the emergency stop and speed settings work properly.
Credit: www.homedepot.com
Using The Drill Press
The Manhattan Heavy Duty Drill Press is a powerful tool for many projects. Using it correctly helps you get clean and precise holes. This guide explains key steps to work safely and efficiently.
Understanding how to adjust settings and position your workpiece is important. Following safety tips keeps you safe during operation.
Adjusting Speed Settings
Choose the right speed for the material you drill. Hard materials need slower speeds. Soft materials work best at higher speeds. Turn the speed dial or change the belt position. Check the drill press manual for exact instructions. Proper speed prevents damage to the drill bit and material.
Positioning The Workpiece
Place the workpiece flat on the drill table. Use clamps or a vise to hold it steady. Align the hole mark under the drill bit. Adjust the table height and angle if needed. A secure workpiece stops slipping and gives accurate holes.
Safety Tips During Operation
Wear safety glasses and hearing protection. Keep hands away from the spinning bit. Use a brush to clear chips, not your hands. Turn off the drill press before making adjustments. Never wear loose clothing or jewelry near the drill. Follow these rules to avoid accidents and injuries.
Maintenance And Troubleshooting
Maintaining the Manhattan Heavy Duty Drill Press is key to its long life and strong performance. Regular care keeps the machine running smoothly. Troubleshooting helps fix small problems before they get worse. This section explains how to clean, oil, and solve common issues.
Regular Cleaning
Dust and metal shavings can build up on the drill press. Use a soft brush or cloth to remove dirt after each use. Clean the table, base, and spindle area carefully. Avoid water or harsh chemicals that can cause rust. Keeping the drill press clean prevents wear and tear.
Lubrication Points
Oiling the drill press is important for smooth movement. Focus on the spindle, quill, and gears. Use machine oil recommended by the manufacturer. Apply oil at least once a month or after heavy use. Proper lubrication reduces friction and extends the tool’s life.
Common Issues And Fixes
The drill press may stop working properly over time. Loose belts cause slipping or uneven speed. Tighten or replace belts if needed. A noisy spindle often means it needs cleaning or oil. Check electrical connections for power problems. Fixing these issues quickly keeps the drill press safe and efficient.
Credit: www.homedepot.com
Applications And Benefits
The Manhattan Heavy Duty Drill Press offers many uses and benefits for various projects. It works well in workshops and small factories. This tool helps users perform precise drilling tasks with ease and accuracy. Its design supports tough materials and complex jobs.
Users find it helpful for different materials and projects. The drill press saves time and effort compared to hand drills. It improves safety and quality in work. Below, we explore the suitable materials, task versatility, and advantages over other tools.
Suitable Materials
The Manhattan Heavy Duty Drill Press handles wood, metal, and plastic. It works well on soft and hard materials. Users can drill holes in steel, aluminum, and brass. It also cuts through thick wood boards. This wide range makes it useful for many tasks.
Versatility In Tasks
This drill press supports drilling, reaming, and countersinking. It allows users to change speed for different jobs. The adjustable table helps set the right height and angle. It can hold various drill bits for many applications. This flexibility suits hobbyists and professionals alike.
Advantages Over Other Tools
The Manhattan drill press provides steady and accurate drilling. It holds the workpiece firmly, reducing errors. It is safer than handheld drills for tough projects. The machine delivers consistent pressure and speed. It also reduces user fatigue during long jobs. These benefits make it a preferred tool in workshops.
Frequently Asked Questions
What Is The Manhattan Heavy Duty Drill Press?
The Manhattan Heavy Duty Drill Press is a powerful machine designed for precise drilling. It offers stability, durability, and high torque for heavy materials, making it ideal for professional and industrial use.
How Does The Drill Press Ensure Drilling Accuracy?
It uses an adjustable table and a precise spindle mechanism. These features allow users to control depth and alignment, resulting in accurate and consistent drilling every time.
What Materials Can The Manhattan Drill Press Handle?
This drill press can handle metals, wood, plastics, and composites. Its robust motor and heavy-duty construction enable it to drill through tough materials effortlessly.
How Is Speed Controlled On This Drill Press?
Speed is controlled via adjustable pulleys or electronic settings. This flexibility helps users match the drilling speed to the material type and thickness for optimal results.
Conclusion
The Manhattan Heavy Duty Drill Press offers strong, reliable drilling power. Its simple design makes it easy to use and maintain. You get precise holes every time, saving effort and time. This tool fits well in any workshop or garage.
Solid build means it lasts for years without trouble. A good choice for both beginners and skilled users. Consider this drill press for your next project. It helps work faster and with better results. A smart tool for steady, accurate drilling tasks.
