If your Craftsman Nextec cordless drill needs a fix or just some cleaning, knowing how to disassemble it is key. You might feel unsure about taking it apart, worried about breaking something or losing small pieces.
But don’t worry—this guide will walk you through every step clearly and simply. By the end, you’ll have the confidence to open up your drill safely and get it working like new again. Ready to save time and money? Let’s dive in.
Credit: www.mystoopidstuff.com
Tools Needed
Disassembling a Craftsman Nextec cordless drill requires a few basic tools. Having the right tools makes the process easier and safer. This section lists all tools you need before starting.
Phillips Head Screwdriver
The drill has several screws that hold parts together. Use a Phillips head screwdriver to remove them. Choose the correct size to avoid stripping screws.
Flat Head Screwdriver
A flat head screwdriver helps to pry open parts gently. It is useful for separating the casing without damage. Use it carefully to avoid scratching the drill.
Needle Nose Pliers
Needle nose pliers help to pull small parts and wires. They allow for precise handling in tight spaces inside the drill. Keep a steady grip with these pliers.
Hex Key Set
Some screws or bolts on the drill may require hex keys. Carry a set of different sizes to fit any hex fastener. These keys fit snugly and prevent slipping.
Plastic Spudger
A plastic spudger helps to open the drill casing without damage. It is safer than metal tools for delicate parts. Use it to separate clips and connectors gently.
Safety Precautions
Disassembling a Craftsman Nextec cordless drill requires care. Safety is the top priority. Following safety steps protects you and your tool.
Before starting, prepare your workspace and gather safety equipment. This helps avoid accidents and damage.
Wear Protective Gear
Always wear safety glasses to protect your eyes from flying debris. Use gloves to protect your hands from sharp parts. Avoid loose clothing that can catch on moving pieces.
Remove The Battery
Take out the battery before disassembly. This stops the drill from turning on by accident. Double-check the drill is off and has no power.
Work In A Clean Area
Choose a clean, flat surface to work on. This keeps small parts from getting lost. Good lighting helps you see screws and components clearly.
Use The Right Tools
Use proper screwdrivers and tools for the drill parts. Using wrong tools can strip screws or damage pieces. Keep tools organized to avoid confusion.
Handle Springs And Small Parts Carefully
Some parts, like springs, can pop out suddenly. Hold parts firmly to prevent loss or injury. Place small pieces in a container to keep them safe.

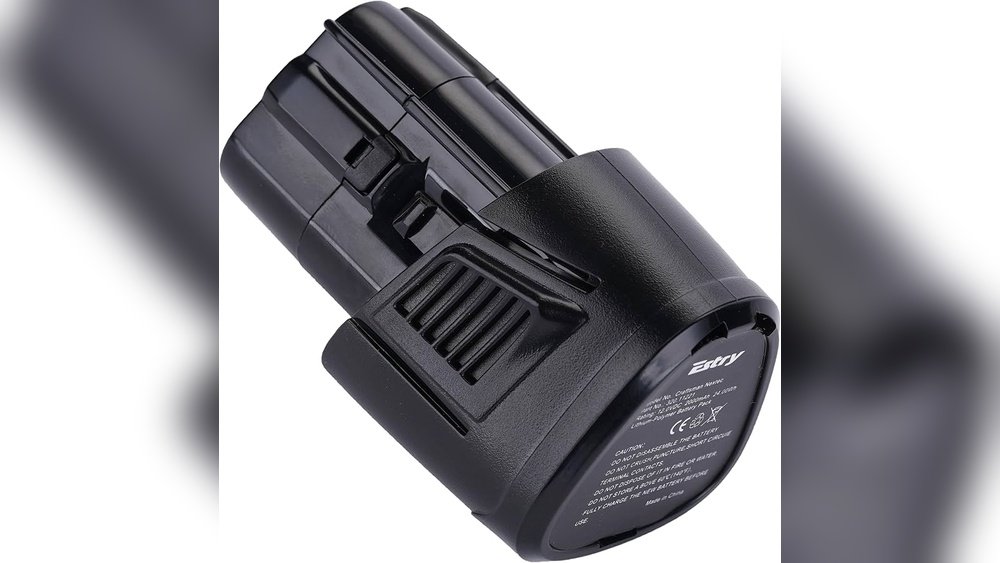

Remove Battery Pack
Removing the battery pack is the first step in disassembling your Craftsman Nextec cordless drill. This part supplies power and must be taken out to work safely. Always remove the battery before any repair or cleaning. It prevents accidental starts and protects internal parts.
Follow simple steps to take out the battery pack quickly. No tools needed. Just a few presses and pulls. This ensures your drill is safe and ready for the next step.
Locate The Battery Release Button
Find the release button on the battery pack. It is usually on the side or top. This button locks the battery in place. Pressing it lets you slide the battery out easily.
Press The Release Button Firmly
Push the release button down with your thumb. Hold it firmly. This unlocks the battery from the drill body. Keep the button pressed during removal.
Slide The Battery Pack Out
While holding the release button, pull the battery pack away. It should slide out smoothly. Do not force it. If stuck, press the button again and try gently.
Credit: www.ebay.com
Detach Chuck
The chuck is the part that holds the drill bits in place. Removing it is key to disassembling the Craftsman Nextec cordless drill. This step helps you clean, repair, or replace the chuck easily.
Follow simple steps to detach the chuck safely. Use the right tools and avoid damage.
Open The Chuck Jaws
Turn the chuck sleeve counterclockwise. Open the jaws fully to release the drill bit. This makes it easier to access the chuck screw inside.
Remove The Chuck Screw
Look inside the chuck for a small screw. It holds the chuck tightly to the drill shaft. Use a screwdriver to turn it clockwise and remove it. This screw is usually reverse-threaded.
Loosen The Chuck
Hold the drill firmly. Use a wrench to grip the chuck. Turn the chuck counterclockwise to unscrew it from the drill shaft. Apply steady force but avoid slipping.
Detach The Chuck From Drill
Once loose, pull the chuck away from the drill shaft. Check for any debris or damage. Clean the area before reassembling or replacing the chuck.
Unscrew Housing
Unscrewing the housing is the first step to take the drill apart. It gives you access to the inside parts. This step requires care to avoid damage. Use the right tools for best results.
Start by finding all the screws on the drill’s case. Removing them carefully will allow the housing to open smoothly. Keep the screws safe to avoid losing them.
Locate Screws
Look closely around the drill’s body. Screws often hide under labels or rubber grips. Check both sides of the drill for screws. Some screws might be small and hard to see. Use a flashlight if needed to spot them.
Remove Screws
Use a proper screwdriver that fits the screws. Turn screws counterclockwise to loosen them. Remove all screws one by one. Place screws in a small container to keep them safe. Avoid forcing screws out to prevent stripping them.
Separate Drill Halves
Separating the halves of your Craftsman Nextec cordless drill is a key step in its disassembly. This process lets you access the inner parts easily. Take your time to avoid damage. Use the right tools and work on a clean surface.
Start by removing all screws that hold the drill together. Keep the screws safe for reassembly. Gently pull the two halves apart. Sometimes, a slight wiggle helps loosen them without force.
Prepare Your Workspace
Clear a flat area to work on. Lay a soft cloth to protect the drill. Organize your tools before starting. This keeps the process smooth and safe.
Remove All Screws
Use a screwdriver to take out every screw from the drill body. Some screws may hide under labels or rubber grips. Check carefully and keep screws in one place.
Separate The Drill Halves Carefully
Hold the drill firmly. Pull the two halves apart slowly. Avoid using sharp tools that may scratch or break the plastic. If stuck, tap lightly with a plastic tool.
Inspect The Internal Components
Once open, look inside for dirt or damage. Notice how parts fit together. This helps during reassembly. Handle internal parts with care to avoid harm.
Disconnect Internal Components
Disconnecting the internal components is a key step in taking apart your Craftsman Nextec cordless drill. This process allows you to safely remove parts without causing damage. Work carefully and keep track of small pieces.
Remove Motor
Locate the motor inside the drill casing. It usually sits near the middle. Use a screwdriver to remove screws holding the motor in place. Gently lift the motor out. Avoid pulling hard to prevent wire damage. Set the motor aside on a clean surface.
Disconnect Wiring
Identify wires connected to the motor and battery terminals. Carefully unplug each wire connector. Use needle-nose pliers if needed. Note wire positions or take a photo for reassembly. Keep wires organized to avoid confusion later.
Remove Trigger Assembly
The trigger assembly controls the drill’s power and speed. Removing it is key for deep cleaning or repairs. This step requires care to avoid damaging small parts.
Start by unplugging or removing the battery for safety. Handle the drill gently during this process.
Locate The Trigger Assembly
Find the trigger on the handle of the drill. It sits just below the main body. You will see screws holding the drill casing together.
Remove The Screws
Use a screwdriver to remove all screws on the handle. Keep them safe to avoid loss. Take off the drill casing slowly to reveal the trigger inside.
Disconnect The Wiring
Look for wires connected to the trigger. Gently unplug or unscrew the connectors. Remember their positions for reassembly.
Take Out The Trigger Assembly
Lift the trigger assembly carefully from its slot. Watch for any clips or tabs holding it in place. Avoid forcing it out to prevent breakage.
Disassemble Gearbox
Disassembling the Craftsman Nextec cordless drill gearbox needs care and simple tools. Remove screws and separate parts slowly to avoid damage. Take notes or photos to remember the order for reassembly.
Preparing To Disassemble The Gearbox
Start by removing the drill’s battery to avoid accidents. Place the drill on a clean surface. Keep small parts organized to prevent loss. Use a screwdriver to take off the outer casing carefully. This gives clear access to the gearbox inside.
Removing The Gearbox Screws
Locate all screws holding the gearbox in place. Use the correct screwdriver size to avoid damage. Turn screws counterclockwise to loosen and remove them. Keep these screws safe for reassembly. Gently lift the gearbox out once screws are removed.
Separating The Gearbox Components
Hold the gearbox firmly to prevent parts from falling. Slowly pull the gearbox apart. Identify the gears, springs, and other internal parts. Note their positions for easy reassembly. Avoid forcing parts apart to prevent damage.
Cleaning And Inspecting Gearbox Parts
Clean each part with a dry cloth. Check for worn or broken gears. Replace any damaged parts before putting the gearbox back. Proper inspection improves drill performance and lifespan.
Clean And Inspect Parts
Cleaning and inspecting parts is a key step in taking apart your Craftsman Nextec cordless drill. This step helps keep the drill in good shape. Dirt and dust can cause problems inside the drill. Checking each part for damage can stop issues before they grow. Proper care extends the drill’s life and keeps it working well.
Cleaning The Drill Components
Start by wiping each part with a dry cloth. Use a small brush to remove dust from tight spots. Avoid using water on electrical parts. Use a soft cloth with a little rubbing alcohol for stubborn grime. Make sure all parts are dry before putting them back.
Inspecting For Wear And Damage
Look closely at gears and moving parts. Check for cracks, chips, or worn edges. Springs should be tight, not loose or broken. Inspect the battery contacts for rust or dirt. Replace any parts that look damaged to keep the drill safe and efficient.
Lubricating Moving Parts
Apply a small amount of machine oil to gears and joints. This helps parts move smoothly and reduces wear. Avoid using too much oil. Wipe off any extra to stop dirt from sticking. Proper lubrication keeps your drill running quietly and efficiently.
Reassemble Tips
Reassembling your Craftsman Nextec cordless drill needs care and patience. Putting parts back in the right order is key. Small mistakes can stop the drill from working well. Follow simple steps to make sure everything fits perfectly and safely.
Keep your workspace clean and organized. Lay out all screws and parts in the order you remove them. This habit helps avoid confusion and lost pieces. Use a magnetic tray or small containers for storage.
Check Each Part Before Assembly
Look at every part carefully. Clean off dirt or dust. Replace broken or worn parts. This step helps the drill last longer and work better. Clean contacts and moving parts with a dry cloth.
Follow The Reverse Order Of Disassembly
Put the drill back together by reversing your steps. Start with the smallest internal parts. Attach screws gently to avoid stripping. Tighten screws evenly to keep parts aligned.
Test The Drill After Assembly
Before closing the drill fully, test its function. Insert the battery and switch it on briefly. Check for unusual sounds or resistance. If something feels wrong, open it again and check your work.
Use Proper Tools For Assembly
Use the right screwdrivers and pliers. Tools that fit well prevent damage to screws and parts. Avoid using too much force. Gentle pressure is better for delicate components.
Keep Safety In Mind
Make sure the battery is out during assembly. Work in a well-lit area. Wear safety glasses to protect your eyes. Handle springs and small parts carefully to avoid injury.
Credit: www.amazon.com
Frequently Asked Questions
How Do I Safely Disassemble A Craftsman Nextec Drill?
First, remove the battery to avoid power accidents. Use the correct screwdriver to unscrew the casing carefully. Keep track of small parts and work on a clean surface.
What Tools Are Needed To Disassemble The Drill?
You mainly need a Phillips screwdriver and a small flathead. Tweezers can help with tiny parts. Having a magnetic tray for screws is also useful.
Can I Fix Internal Parts After Disassembly?
Yes, you can replace or repair worn components. Inspect gears, brushes, and switches for damage. Order replacement parts from authorized dealers if needed.
How Do I Avoid Damaging The Drill During Disassembly?
Work slowly and avoid forcing parts apart. Use proper tools and keep screws organized. Document the process with photos for easier reassembly.
Conclusion
Disassembling the Craftsman Nextec cordless drill is simple with the right steps. Take your time and follow each step carefully. Keep all parts organized to avoid confusion later. Use basic tools like screwdrivers and pliers for the job. This process helps with cleaning or fixing your drill.
Remember safety first—always remove the battery before starting. Now you can handle repairs or maintenance easily. Practice makes perfect, so don’t rush. You’ll feel confident working on your drill next time.
