In this guide, you’ll discover how to load a Bostitch SB 1664FN nail gun quickly and safely. We cover every step, from preparing the tool to troubleshooting common issues, so your nail gun stays in top shape for your projects.
Key Takeaways
- Understand the tool: Familiarize yourself with the parts of the Bostitch SB 1664FN nail gun before loading.
- Use the correct nails: Always choose the right size and type of nails recommended by Bostitch for best results.
- Ensure safety first: Disconnect the nail gun from power or air supply before loading to prevent accidents.
- Follow proper loading steps: Carefully load nails in the magazine, aligning them properly for smooth operation.
- Check for jams: After loading, inspect the tool for jams or misfeeds and clear them if needed.
- Maintain your tool: Regularly clean and inspect your nail gun to keep it functioning properly.
Introduction
If you own a Bostitch SB 1664FN nail gun, knowing how to load it correctly is essential for safe and efficient operation. Whether you’re a DIY enthusiast or a professional carpenter, properly loading your nail gun ensures smooth performance and helps prevent jams or damage. In this comprehensive guide, you’ll learn the step-by-step process to load your Bostitch SB 1664FN nail gun safely and correctly. Let’s get started!
Understanding Your Bostitch SB 1664FN Nail Gun
Before diving into the loading process, it’s important to understand the key parts of your nail gun. Familiarity with these components makes loading easier and helps troubleshoot issues later.

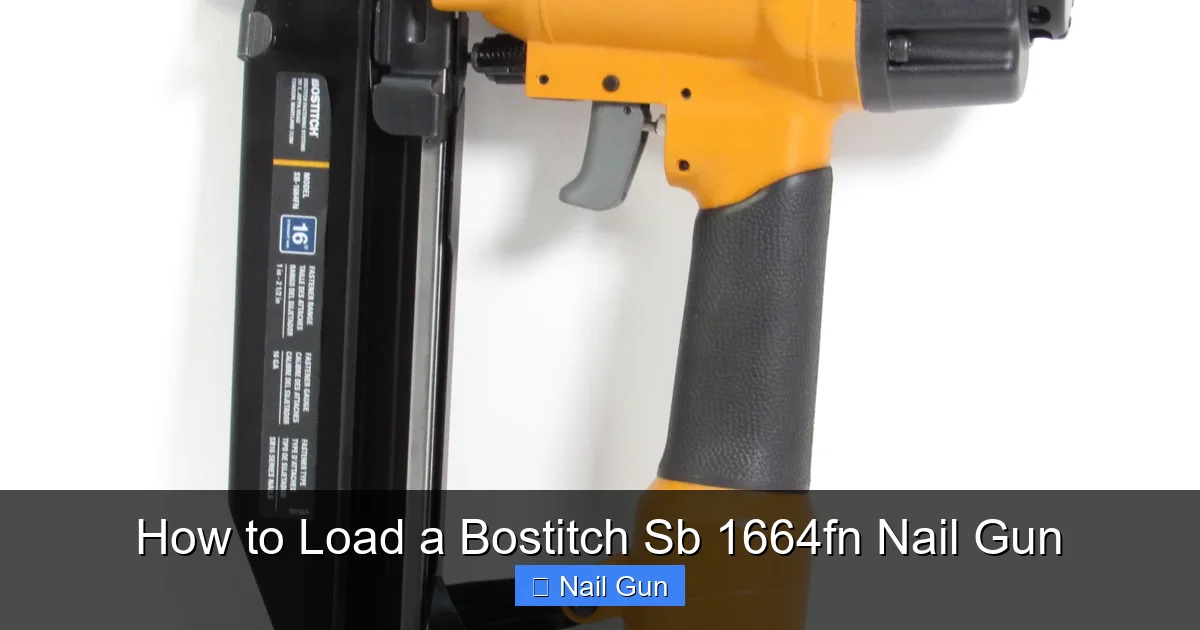

Visual guide about How to Load a Bostitch Sb 1664fn Nail Gun
Image source: assets.pawnamerica.com
- Magazine: The part that holds the nails and feeds them into the firing chamber.
- Loading Chamber: The area where nails are placed before being fed into the gun.
- Trigger: Activates the firing mechanism when pressed.
- Safety Mechanism: Prevents accidental firing; often involves a contact tip or trigger lock.
Refer to your user manual for detailed diagrams and descriptions of your specific model.
Tools and Materials Needed
- Correct nails: 1-1/4 inch to 1-1/2 inch nails compatible with the Bostitch SB 1664FN.
- Safety gear: Safety glasses and gloves to protect yourself during loading.
- Clean workspace: A clear area to work safely and comfortably.
- Optional: Lubricant spray for maintenance.
Preparation Before Loading
1. Turn Off and Disconnect the Tool
Always begin by turning off your nail gun and disconnecting it from the power source or air compressor. This step is crucial to prevent accidental firing during loading.

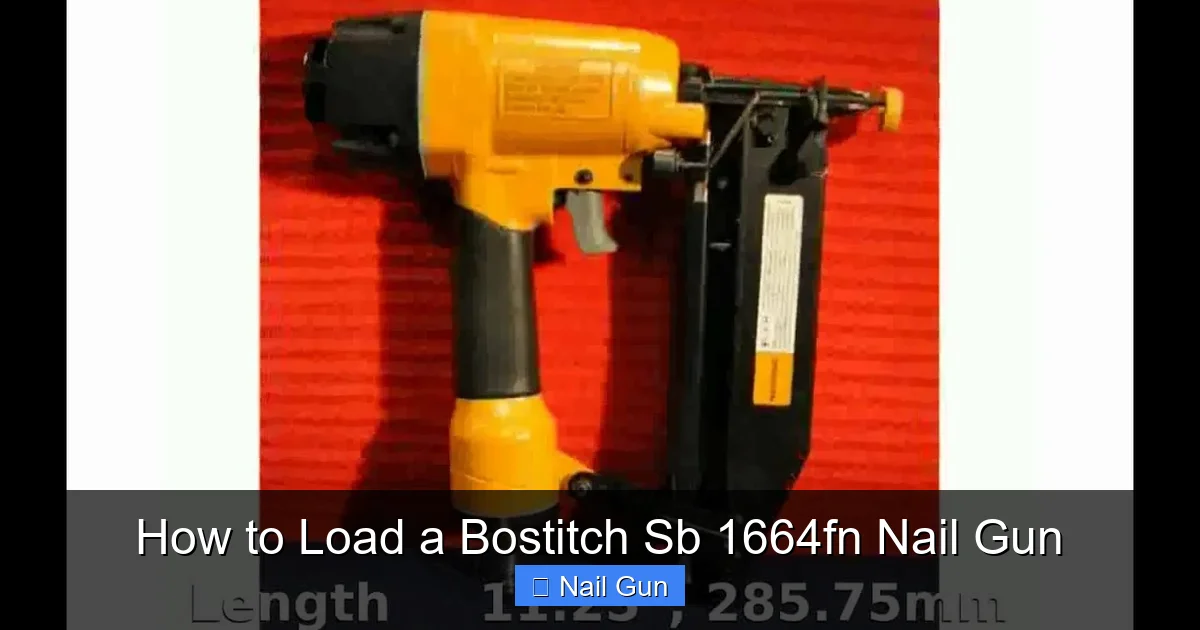

Visual guide about How to Load a Bostitch Sb 1664fn Nail Gun
Image source: assets.pawnamerica.com
- If your nail gun is corded, unplug it from the outlet.
- If it’s pneumatic, disconnect the air hose.
2. Wear Safety Gear
Put on safety glasses and gloves. Handling nails and working with tools can pose risks, so safety first.
3. Clear the Workspace
Ensure your workspace is clean and well-lit. Remove any obstacles that might interfere with the loading process.
Step-by-Step Guide to Load the Bostitch SB 1664FN Nail Gun
Step 1: Open the Magazine
Locate the magazine release latch or button. Usually, it’s on the side or bottom of the magazine.
- Press or slide the latch to release the magazine cover.
- Open the magazine door or slide it down to access the nail chamber.
Step 2: Prepare the Nails
Choose the correct nails as specified by Bostitch. Confirm they are clean and free of rust or damage.
- Hold the nails in your hand or use a container for easy access.
Step 3: Load the Nails into the Magazine
Align the nails properly to ensure smooth feeding.
- Insert the nails into the magazine, pointed end facing forward.
- Ensure the nails are stacked neatly and aligned with the feed track.
- Check that the nails are seated all the way at the back of the magazine.
Tip:
Some models have a spring-loaded follower or a guide to help keep nails in position. Use it to push nails firmly into place if needed.
Step 4: Close the Magazine
Once nails are loaded, close the magazine door securely.
- Ensure it clicks into place or is properly latched.
Step 5: Reconnect and Test
Reconnect the air hose or plug in the power cord.
Before using the tool, do a test fire into scrap material to ensure nails feed correctly and the tool functions properly.
Practical Tips for Smooth Loading
- Use fresh nails: Old or rusted nails can cause jams.
- Don’t overfill: Avoid packing nails too tightly; leave some space for movement.
- Align nails correctly: Proper alignment prevents misfeeds and jams.
- Regular maintenance: Clean the magazine and feed track periodically for optimal performance.
Troubleshooting Common Loading Issues
Jams or Misfeeds
If nails jam during or after loading, turn off your tool, disconnect it, and carefully clear the jam. Check for damaged nails or misaligned nails and reload properly.
Nails Not Feeding
Ensure nails are seated correctly and the follower is functioning. Clean the magazine and feed track if necessary.
Tool Not Firing After Loading
Verify that the nails are compatible and properly loaded. Also, check safety mechanisms and trigger connections.
Conclusion
Loading your Bostitch SB 1664FN nail gun safely and correctly is simple once you understand the process. Always prioritize safety by disconnecting the tool before loading, using the right nails, and inspecting for jams. Regular maintenance and careful handling will keep your nail gun working efficiently for years to come. Now, you’re ready to tackle your carpentry projects with confidence!
Additional Tips
- Store nails in a dry place to prevent rusting.
- Read the user manual for specific instructions related to your model.
- Practice loading on scrap material until you’re comfortable with the process.
