Is your Milwaukee hammer drill’s cord set worn out or damaged? Replacing it yourself can save you time and money, but you might be unsure where to start.
Don’t worry—this guide will walk you through every step clearly and simply. By the end, you’ll have the confidence to fix your drill and get back to work quickly. Ready to learn how to replace your cord set safely and easily?
Let’s dive in.
Credit: www.acehardware.com
Tools And Materials Needed
Replacing the cord set on a Milwaukee hammer drill requires the right tools and materials. Having these ready makes the process safer and easier. This section lists everything needed for the job.

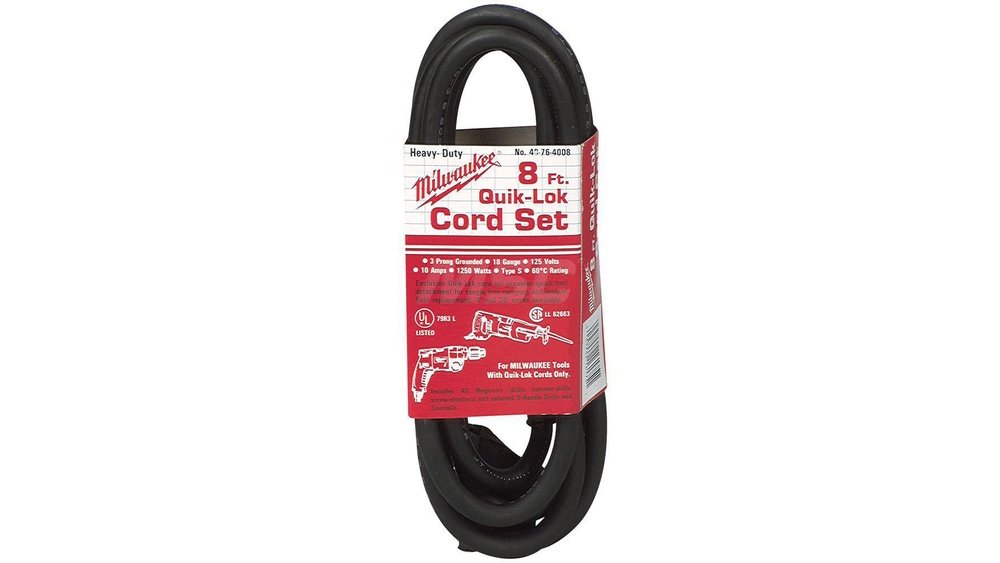

Replacement Cord Set
Choose a cord set compatible with your Milwaukee hammer drill model. It should match the original in length and thickness. A good quality cord ensures safe and reliable operation.
Screwdrivers
A set of screwdrivers is essential. You will need both flathead and Phillips screwdrivers. These help open the drill housing and remove screws holding the cord in place.
Wire Strippers
Wire strippers make removing insulation from wires simple and clean. This tool prevents damage to the wires during preparation for connection.
Electrical Tape
Electrical tape insulates wire connections. Use it to wrap exposed wires and prevent electrical shorts. It adds an extra layer of safety to your repair.
Utility Knife
A sharp utility knife helps cut the outer cord jacket precisely. This tool assists in exposing the inner wires without damaging them.
Multimeter
A multimeter tests the new cord for continuity. It ensures wires are connected correctly before reassembling the drill. This step avoids future electrical problems.
Safety Precautions
Safety is the top priority when replacing the cord set on a Milwaukee hammer drill. Working with electrical parts can be risky without proper care. Taking the right safety steps protects you from shocks and injuries.
Follow safety rules strictly. Avoid rushing through the process. Stay alert and focused at all times.
Disconnect Power Source
Always unplug the drill from the power outlet before starting. This stops any accidental electric flow. Double-check that the drill is not connected to any power source.
Wear Protective Gear
Use safety glasses to protect your eyes from sparks or debris. Wear gloves to avoid cuts and electric shocks. Use non-slip shoes to keep steady while working.
Work In A Dry Area
Choose a dry, clean workspace. Avoid wet or damp places to reduce electric shock risk. Keep the floor clear of water and clutter for better safety.
Use Proper Tools
Only use tools made for electrical work. Insulated screwdrivers and pliers reduce shock risk. Do not use damaged or worn-out tools during the repair.
Check Cord Condition Before Installation
Inspect the new cord for any cuts or damage. Do not install a cord that looks faulty. A good cord ensures safe and reliable operation.
Removing The Old Cord Set
Removing the old cord set is the first step in fixing your Milwaukee hammer drill. This process needs care and simple tools. Follow these steps to safely remove the worn-out cord and prepare for the new one.
Start by making sure the drill is completely disconnected from power. Safety is key before opening the tool. Next, you will open the drill housing to find the cord connections inside. Finally, disconnect the old cord carefully, so the drill is ready for the replacement.
Unplugging The Drill
Always unplug the drill from the power source before starting. This stops any chance of electric shock. Check the plug and cord for damage. Hold the plug firmly and pull it out from the socket. Never pull on the cord itself.
Opening The Drill Housing
Use a screwdriver to remove screws on the drill housing. Keep the screws safe to avoid losing them. Gently separate the two halves of the housing. Be careful not to break any clips or wires inside.
Disconnecting The Cord
Locate where the cord connects inside the drill. Usually, the cord wires are attached to terminals or solder points. Use a small screwdriver or pliers to disconnect the wires. Note the wire positions to reconnect the new cord correctly.
Credit: www.airgas.com
Preparing The New Cord Set
Preparing the new cord set is an important step in replacing your Milwaukee hammer drill’s power cord. This stage ensures safety and proper function of the tool. Getting the right cord and readying it properly helps avoid electrical problems. Follow these simple steps to prepare the new cord set correctly.
Matching The Cord Specifications
Check the original cord’s thickness and length. Use a cord with the same gauge to handle the drill’s power safely. The voltage rating must match the drill’s requirements. Choose a cord with durable insulation to resist wear and heat. Matching these specs keeps your drill running smoothly and safely.
Stripping The Wire Ends
Use a wire stripper to remove about half an inch of the cord’s outer sheath. Be careful not to cut the inner wires. Then, strip about a quarter inch of insulation from each wire end. This exposes the copper for connection. Twist the copper strands to keep them tight and neat. Clean and well-prepared wire ends ensure a solid electrical connection.
Installing The New Cord Set
Installing the new cord set on your Milwaukee hammer drill is a straightforward step. It ensures your drill works safely and efficiently. Follow these simple instructions to install the new cord set correctly.
Connecting The Wires
First, strip the ends of the wires on the new cord. Match the wire colors to the drill’s terminals. Usually, black or brown is live, white or blue is neutral, and green or yellow-green is ground. Use a screwdriver to loosen the terminal screws. Insert the wires firmly and tighten the screws. Double-check the connections to avoid loose wires.
Securing The Cord
Next, place the cord in the drill’s cord clamp or strain relief device. This keeps the cord from pulling loose during use. Tighten the clamp screws to hold the cord in place. Make sure the cord is snug but not pinched. Proper securing prevents damage and electrical hazards.
Reassembling The Drill
Put the drill housing back together carefully. Align all parts to avoid forcing them. Replace and tighten the screws holding the housing. Check that the drill switch and trigger move freely. Your Milwaukee hammer drill is now ready for use with the new cord set installed.
Testing The Repair
Testing the repair is a key step after replacing the cord set on your Milwaukee hammer drill. It makes sure the drill works safely and properly. Without testing, you might miss a loose connection or a faulty wire.
Take your time to check everything. This helps avoid damage to the drill or injury to yourself. Follow the steps below to test the repair carefully and confidently.
Plugging In The Drill
First, find a safe place to plug in your drill. Use a power outlet that is working well. Avoid extension cords or outlets with other heavy tools attached.
Hold the drill firmly and plug it in. Watch for any sparks or unusual smells. If you see or smell anything odd, unplug the drill right away. Double-check your wiring before trying again.
Running A Function Test
Next, turn on the drill using the trigger switch. Listen for smooth motor sounds. The motor should start quickly without hesitation or strange noise.
Test the hammer function by pressing the hammer mode switch. The drill should make a steady hammering sound. Check the speed control. The drill should speed up and slow down easily.
Stop and unplug the drill after testing. Make sure the cord feels secure and cool. If everything works well, your repair is successful.
Troubleshooting Common Issues
Troubleshooting common issues helps you fix problems fast. It saves time and keeps your Milwaukee hammer drill working well. Knowing what to check makes cord set replacement easier. Here are common problems and how to solve them.
Cord Not Powering Drill
Check the power source first. Make sure the outlet works by testing another tool. Inspect the cord for cuts or damage. A broken wire inside stops power flow. Replace the cord if you see damage. Sometimes, the plug may be loose or worn out. Tighten or replace the plug to restore power.
Loose Connections
Loose wire connections cause intermittent power issues. Open the drill’s casing carefully. Look for wires that are not tight or disconnected. Use a screwdriver to secure all connections. Wiggle each wire to check for movement. Secure connections prevent sparks and power loss. Always recheck after replacing the cord set.
Safety Concerns
Unplug the drill before any repair. Use insulated tools to avoid electric shock. Avoid working in wet areas to reduce risk. Check the cord insulation for cracks or wear. Damaged insulation can cause shocks or short circuits. Replace worn cords immediately. Always wear safety gloves and goggles while repairing.
Credit: www.tacomascrew.com
Frequently Asked Questions
How Do I Know When To Replace The Cord Set?
If your Milwaukee hammer drill’s cord is frayed, damaged, or shows exposed wires, it’s time to replace it. Regular inspection helps prevent electrical hazards and ensures safe operation.
What Tools Are Needed To Replace The Cord Set?
You will need a screwdriver, wire strippers, electrical tape, and a replacement cord set compatible with your Milwaukee hammer drill. Safety gloves are also recommended.
Can I Replace The Cord Set Myself Safely?
Yes, if you follow safety precautions like unplugging the drill and working in a dry area. Carefully disconnect and reconnect wires according to the drill’s wiring diagram.
How Long Does It Take To Replace The Cord Set?
Replacing the cord set typically takes 15 to 30 minutes, depending on your experience level. Proper preparation and following steps carefully can speed up the process.
Conclusion
Replacing the cord set on your Milwaukee hammer drill is simple and safe. Follow each step carefully to avoid mistakes. Use the right tools and check your work before plugging in. This keeps your drill working well and protects you from harm.
Taking time to do it right saves money and frustration later. Keep your drill ready for any project with this easy fix.
